Q235B or Q345B Artificial Palm Tree Cell Phone Tower Antenna Towers
| Place of Origin | Guangzhou, China |
|---|---|
| Brand Name | GUANGXIN |
| Model Number | GX-1009 |
| Minimum Order Quantity | 1 set |
| Price | USD20000 per set |
| Packaging Details | wooden pallet and cartons |
| Delivery Time | 20-25 days |
| Payment Terms | L/C, T/T, Western Union, MoneyGram |
| Supply Ability | 100 sets per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Certification | ISO9001:2008 SGS COC | Type | Artificial Palm Tree Antenna Mast Cell Phone Towers |
|---|---|---|---|
| Name | Galvanized Steel Pipes Monopole Artificial Trees And Plants | Material | Q235B Or Q345B |
| Height | 30-80m | Applications | Camouflaged Communication Antenna Station, Landscaping |
| Design Loading | As Per Requirement And Specification By Clients Worldwide. | Life Period | More Than 25 Years, It Is According To Installing Environment |
| Lifespan | 50 Years | ||
| High Light | Structural Carbon Steel Cell Phone Towers,Q235B Fake Palm Tree Towers,30m Fake Palm Tree Cell Tower |
||
Product Description
Artificial Palm Tree Antenna Mast Cell Phone Towers
SUPPORTING STRUCTURE is composed of individual mounting elements which are then joined by the slip-on system or flange joints. Profiles are of polygonal or circular type and the first tower segment is, with the help of the flanges and anchor bolts, connected to the foundation. FOUNDTION ANCHOR BOLTS are made up of steel rods which are cast in the reinforced concrete foundations and positioned by template included in the supply. CLIMBING LADDERS are anchored just outside of the pole tower and can be equipped with a safety climbing system.
Specifications of Cell Phone Towers:
| Descriptions | Artificial palm tree Steel pole for landscaping and mounting communication antennas, microwaves, RRUs etc. as camouflaged telecom tower |
| HS Code | 7308900000 |
| Material | Weldable structural carbon steel |
| Grade | GB Q235, Q345, BS4360, ASTM A36 etc. |
| Yield Strength | 235-355MPa |
| Height | 5m to 50m or other specified height |
| Thickness | 4mm to 20mm, depending on height of pole. |
| Pole Shape | Conical/tapered, straight round/cylindrical, square or rectangular, polygonal etc. |
| Diameter or Dimensions | Subject to height of pole and required mechanical properties. |
| Design | Single, dual or multiple platforms and brackets |
| Surface Finish | Hot dip galvanization plus bionic cortex |
| Galvanization | 65-100 Microns |
| Cortex and leaves | fiberglass and polymer resin |
| Color | artificial palm green leaves and brown cortex |
| Applications | landscaping and GSM, radio, 3G/4G/5G microcell, macrocell and other communication signal transmission and distribution. |
Features:
1. Main Pole: single tube alloy steel component.
2. One-time treatment on the surface of the tree pole. Hot-dip galvanized anti-corrosion and anti-rust treatment, 50 years anti-corrsion standard.
3. Secondary treatment of the surface of tree pole, externally coated with composite polymer intergrated bionic bark, high wave transmission rate, no cracking and no aging.
4. Leaves: use anti-ultraviolet PU environmental protectioni material. Super corrosion resistance, aging resistance and high temperature resistance, reaching Class I flame retardant index, 20 years design life.
Details of artificial palm tree: leaves/fronds/branches, trunk and frame.
“Stealth sitings of antennas and towers: are also used to hide appearance of these
facilities in the community: examples of concealed or camouflaged antenna structures are
shown above.

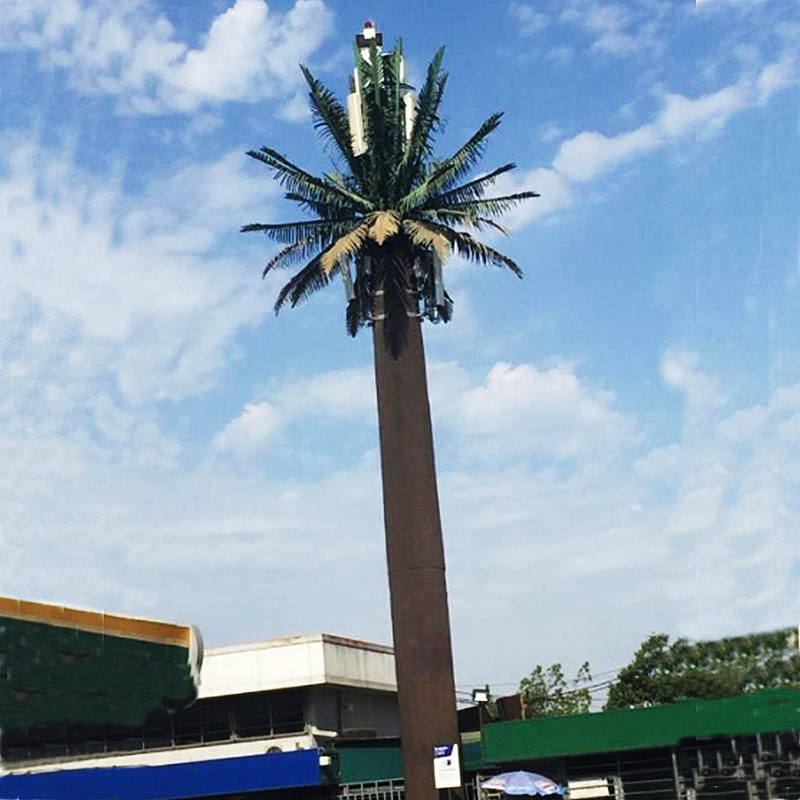

“Tree” Monopole: the monopole pictured below has been disguised to look like a tree
by attaching artificial branches made from material which will not interfere with the
signals transmitted from the antennas which they conceal. The steel pole is treated with a
material designed to look like bark as well.
Monopole Tower Artificial Palm Tree Antenna Mast
