Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xCertification | ISO9001:2008 SGS COC | Type | Antenna Tower |
---|---|---|---|
Name | Galvanized Steel Pipes Monopole Artificial Trees And Plants | Material | Q235B Or Q345B |
Height | 30-80m | Applications | Camouflaged Communication Antenna Station, Landscaping |
Design Loading | As Per Requirement And Specification By Clients Worldwide. | Life Period | More Than 25 Years, It Is According To Installing Environment |
Lifespan | 50 Years | ||
High Light | Q235B Artificial Tree Cell Towers,Artificial Plants Monopole Cell Towers,Artificial Palm Tree Steel Pole |
Galvanized Steel Pipes Monopole Artificial Trees and Plants
Features:
1. Main Pole: single tube alloy steel component.
2. One-time treatment on the surface of the tree pole. Hot-dip galvanized anti-corrosion and anti-rust treatment, 50 years anti-corrsion standard.
3. Secondary treatment of the surface of tree pole, externally coated with composite polymer intergrated bionic bark, high wave transmission rate, no cracking and no aging.
4. Leaves: use anti-ultraviolet PU environmental protectioni material. Super corrosion resistance, aging resistance and high temperature resistance, reaching Class I flame retardant index, 20 years design life.
Specifications of Monopole Tower:
Descriptions | Artificial palm tree Steel pole for landscaping and mounting communication antennas, microwaves, RRUs etc. as camouflaged telecom tower |
HS Code | 7308900000 |
Material | Weldable structural carbon steel |
Grade | GB Q235, Q345, BS4360, ASTM A36 etc. |
Yield Strength | 235-355MPa |
Height | 5m to 50m or other specified height |
Thickness | 4mm to 20mm, depending on height of pole. |
Pole Shape | Conical/tapered, straight round/cylindrical, square or rectangular, polygonal etc. |
Diameter or Dimensions | Subject to height of pole and required mechanical properties. |
Design | Single, dual or multiple platforms and brackets |
Surface Finish | Hot dip galvanization plus bionic cortex |
Galvanization | 65-100 Microns |
Cortex and leaves | fiberglass and polymer resin |
Color | artificial palm green leaves and brown cortex |
Applications | landscaping and GSM, radio, 3G/4G/5G microcell, macrocell and other communication signal transmission and distribution. |
Camouflaged Tree Tower is also a kind of cartificial trees of Bionic tree tower, on base like a real one, plus the meticulous design, when placed among the real trees in sightseeing area, park and square, it will be a part of the nature.
Features:
1. Exquisite structure and gorgeous appearance.
2. Strong structural stability and long working life.
3. Small area covering and great economic effect.
Details of artificial palm tree: leaves/fronds/branches, trunk and frame.
“Stealth sitings of antennas and towers: are also used to hide appearance of these
facilities in the community: examples of concealed or camouflaged antenna structures are
shown above.

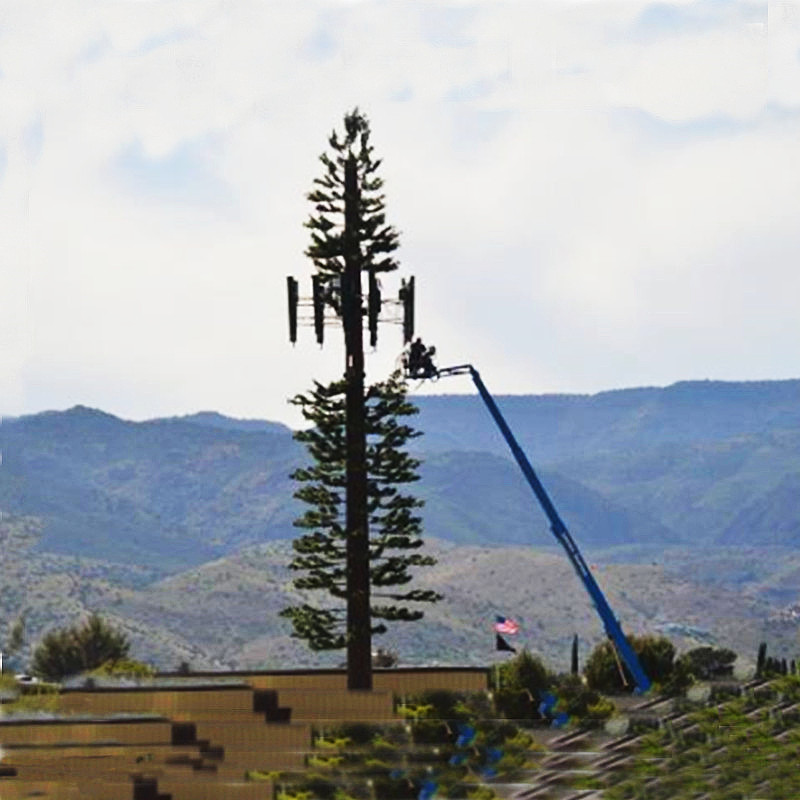

“Tree” Monopole: the monopole pictured below has been disguised to look like a tree
by attaching artificial branches made from material which will not interfere with the
signals transmitted from the antennas which they conceal. The steel pole is treated with a
material designed to look like bark as well.
Artificial Trees and Plants Communication Antennas Cell Towers
