Guangxin Q235B or Q345B Galvanized Electric Power Pole 30m 40m

Place of Origin Guangzhou, China
Certification ISO9001
Model Number GX-3503
Minimum Order Quantity 1 set
Price USD1990-20000 per set
Packaging Details plastic bubble sheets or cloth package by bundle
Delivery Time 25-30 days
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 1000 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Material Q235B Or Q345B Galvanization Standard ASTM A123/ ISO 1461
Height 20-100M Voltage 33KV, 66/69KV, 110KV, 220KV/230KV, 330KV, 380/400KV, 500KV, 750KV, 800KV, 1000KV Transmission Line
Warranty 10 Years Lifespan 50 Years
High Light

Guangxin Telecom Steel Tower


30m Galvanized Electric Power Pole


40m Telecom Steel Tower

Leave a Message
Product Description

Product Specification:


Name Guangxin Galvanized Electric Power Pole 30m 40m
Material Angle steel plates, flat steel plate, bolts and nuts
Steel Type Weldable low carbon structural steel
Steel Grade GB Q235, Q345, BS 4360, ASTM A36 etc.
Yield Strength Fy≥235MPa
Tensile Strength Fu≥400MPa
Elongation σ≥20%
Surface Finish Hot dip galvanization
Galvanized layer T≥65μm
Height 20m to 100m, customized to requests
Design 4 legs self-supporting or free standing lattice tower
Structure 1 to 5 platforms, each platform comes with 4 to 6 brackets for mounting antennas or specified number of brackets for mounting antennas, microwaves, RRUs and other devices.
Supply mode CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down)
Fixing/Fastening Bolts and nuts, connecting plates
Configuration Foundations/anchoring bolts, tower sections, 1-5 platforms (optional), mounting brackets, ladder, anti-fall safety system, lightning rod, earthing plate etc.
Wind Load 0.35-1.0kN/sqm
Lifespan 20-50 years
Warranty 3 years
Applications GSM/3G/4G/5G/FM radio antennas, microwaves, telecom stations.

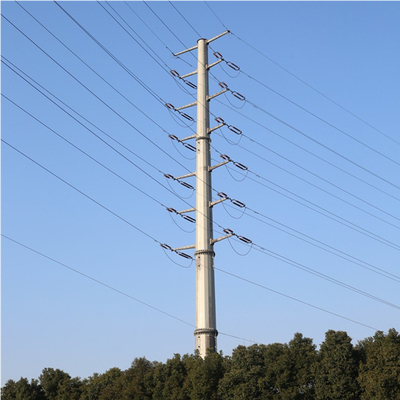

Guangxin Q235B or Q345B Galvanized Electric Power Pole 30m 40m 0

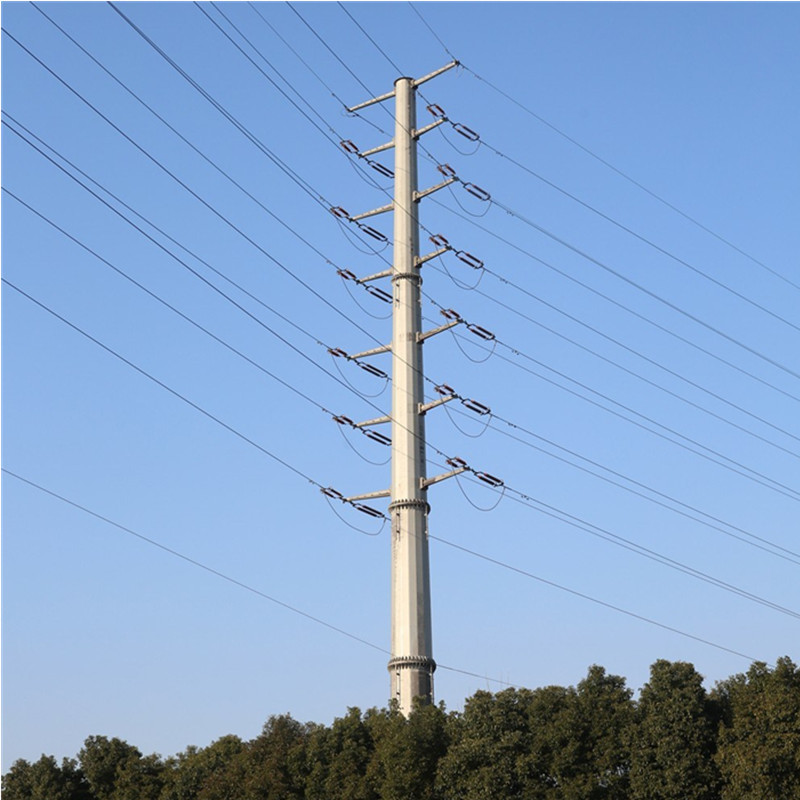

Guangxin Galvanized Electric Power Pole 30m 40m Tower




1. POLE SHAFT: Chinese steel Q345B, which same to ASTM A572 GR50
2. Other webs, bracing and not stress plate and angle steel: Chinese Q235B, which same to ASTM A36
3. Plates: Chinese steel Q345B, which same to ASTM A572 GR50
4. Bolts: Chinese grade 6.8 and 8.8, which similar to ASTM A394
A) Dimension and tolerance for angle are according to GB/T1591-1994, similar to EN 10056-1/2
B) Hot DIP galvanization in accordance with GB/T 13912-2002, which similar to ASTM A 123
C) The welding will be performance in accordance with AWS D1.1 or CWB standard


Guangzhou Guangxin Telecommunication Equipment Co.,Ltd. is a large scale manufacturer of telecommunications and traffic facilities, including telecommunicationi monopoles and towers, street light poles and towers, power gride&electricity wire towers, lighting protection poles, artificial bionic tree for camouflaged telecommunication, CCTV camera poles and high masts, guideboards poles, billboards and led display gantry frames, ETC toll gate frames and other steelworks. Many projects we supplies have won parter reputation, awards and approvals from the users and customers. We are supplying the steelworks for 5G infrastructures, smart city and safe traffic
facilities, civil contruction and developing many other fields.

We have our own professionial engineer, designer and skilled workes. And our production line is equipped with CNC, laser
cutting machine, welding machine, shaping machine and test instrument etc. ODM service is welcomed.

Guangxin brand, make for the world. Welcome to visit us and work together with us to make a better future.
