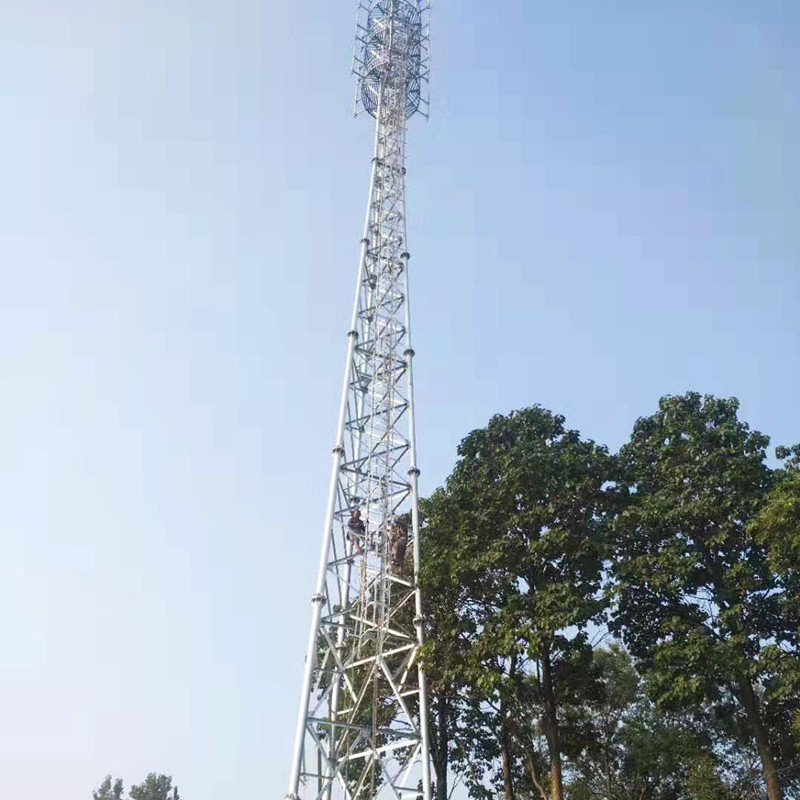

50m GSM Antenna Tubular Telecom Steel Tower Lattice Frame

  • 50m GSM Antenna Tubular Telecom Steel Tower Lattice Frame
  • 50m GSM Antenna Tubular Telecom Steel Tower Lattice Frame
Place of Origin Guangzhou, China
Brand Name GUANGXIN
Certification ISO9001
Model Number GX-3495
Minimum Order Quantity 1 set
Price USD1998-20000 per set
Packaging Details plastic bubble sheets or cloth package by bundle
Delivery Time 20-30 days
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 500 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name 50m GSM Antenna Tubular Telecommunication Tower Material Weldable Structural Angle Steel Plates Or Pipes
Surface Finish Hot-dip Galvanized Or Painting Height 20m To 80m Height
Material Grade GB Q235, Q345, Q355 Or Specified Grade Yield Strength 235~355MPa
Galvanized Thickness 65~85 Microns Design Lattice Frame Constructure
Wind Load 0.36-1.0kN/sqm Color Grey Color Coating
High Light

Tubular Telecom Steel Tower

,

50m Telecom Steel Tower

,

Lattice Frame Telecom Steel Tower
Leave a Message
Product Description

50m GSM Antenna Tubular Telecommunication Tower



Self-Supporting Tower:



— Bolt-Together Construction

— Allows modification for load changes

— Constructed of pipe, solid round pipe legs

— Triangular

— Tower bracing pattern dependent on tower size and antenna loading

— Hot dip galvanized finish per ASTM A123

— Tower painting optional

— Includes climbing ladder or step bolts, and cable-type safety climb system

— Meets or exceeds TIA/EIA-222 standards

— All fasteners meet or exceed ASTM A325 specifications

— Complete line of antenna mounts available





Tower Location: needed to identify tower and to determine the TIA/EIA-222-G or TIA/EIA-222-F recommended wind speeds.

Tower Make/Model: gives us the information needed to determine tower construction.

Tower Height.

Compass orientation of tower face.

As-built drawings.

Tower leg, diagonal and girt sizes with type and grade of steel.

Quantity, size and grade of bolts used in construction.

Accurate antenna loading on tower (antenna type, elevation on tower, azimuth.)

Location and type of other loads on tower (lights, platforms, ice shields, etc.)

Soils analysis at tower base and at guy anchors.

Elevation of guy anchors as compared to the elevation of the tower base.

Location and sizes of antenna feed lines.

Location and size of stabilizers.

Guy anchor radii (distance of guy anchors from base of tower.)

Type of tower base (pivot or fixed.)

Foundation design for tower and anchors.

Proposed antenna loading, if the tower is to be analyzed considering loads other than the existing tower load.

Photographs of the tower.

Any unusual climatic conditions. (For example, are prevailing wind and ice conditions at the tower site higher than normal)

NOTE: Absence of the above information will cause the tower to be analyzed based on certain assumptions such as soil conditions,

manufacturers’ specifications, and professional engineering experience and judgment. The analysis results will represent conditions as

provided to Ehresmann Engineering by the client. Ehresmann Engineering can provide an on-site inspection of your tower to obtain required information.



Specifications of Tubular Telecommunication Steel Tower



Material Angle steel plates, flat steel plate, bolts and nuts
Steel Type Weldable low carbon structural steel
Steel Grade GB Q235, Q345, BS 4360, ASTM A36 etc.
Yield Strength Fy≥235MPa
Tensile Strength Fu≥400MPa
Elongation σ≥20%
Surface Finish Hot dip galvanization
Galvanized layer T≥65μm
Height 20m to 100m, customized to requests
Design 4 legs self-supporting or free standing lattice tower
Structure 1 to 5 platforms, each platform comes with 4 to 6 brackets for mounting antennas or specified number of brackets for mounting antennas, microwaves, RRUs and other devices.
Supply mode CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down)
Fixing/Fastening Bolts and nuts, connecting plates
Configuration Foundations/anchoring bolts, tower sections, 1-5 platforms (optional), mounting brackets, ladder, anti-fall safety system, lightning rod, earthing plate etc.
Wind Load 0.35-1.0kN/sqm
Lifespan 20-50 years
Warranty 3 years
Applications GSM/3G/4G/5G/FM radio antennas, microwaves, telecom stations.



50m GSM Antenna Tubular Telecom Steel Tower Lattice Frame 0



We are leading Chinese Tower manufacturer which have more than 10 years experiences, offering all kind of tower products and related accessories, do installation and maintenance, and have been exporting more than 45 countries over the decades.

Also we have lots of experiences for the tower design based on International standard and offering low cost-effective solution to our clients worldwide.
