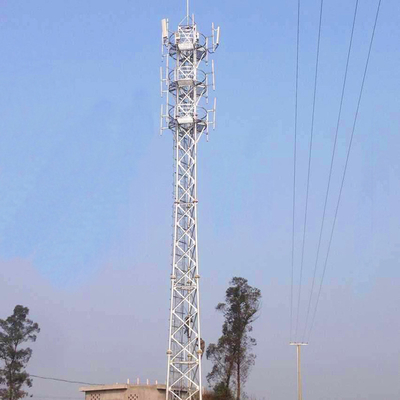

Steel Telecom Antenna Mobile Tower 45m Galvanized Tubular Lattice

Place of Origin Guangzhou, China
Certification ISO9001
Model Number GX-3496
Minimum Order Quantity 1 set
Price USD1998-20000 per set
Packaging Details plastic bubble sheets or cloth package by bundle
Delivery Time 20-30 days
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 500 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Name 45m Galvanized Tubular Lattice Steel Telecom Antenna Mobile Tower Material Weldable Structural Angle Steel Plates Or Pipes
Surface Finish Hot-dip Galvanized Or Painting Height 20m To 80m Height
Material Grade GB Q235, Q345, Q355 Or Specified Grade Yield Strength 235~355MPa
Galvanized Thickness 65~85 Microns Design Lattice Frame Constructure
Wind Load 0.36-1.0kN/sqm Color Grey Color Coating
High Light

Steel Telecom Antenna Mobile Tower


45m Telecom Antenna Mobile Tower


Tubular Lattice Telecom Steel Tower

Leave a Message
Product Description

45m Galvanized Tubular Lattice Steel Telecom Antenna Mobile Tower



1. Material: Normally Q345B/A572, Minimum Yield Strength ≥ 345 N/mm²

Q235B/A36, Minimum Yield Strength ≥ 235 N/mm²

As well as Hot rolled coil from ASTM A572 GR65, GR50, SS400, or any other standard by client required.

2. Tower Type: Steel Tube, Angle Steel, Lattice Mast, Self-supporting

3. Tower Style: Mono Pole Tower, Three Legs Tower, Four Legs Tower

4. Height: Below 100 meter, customized.

5. Wind Pressure: 0.35-1 KN/m2

6. Connection: Flanges, Inserting, Connecting Plate & Bolt

7. Surface Treatment: Hot Dipped Galvanized

8. Zinc Coating: 65μ-85μ

9. Supply Capacity: 1500 MT/Month

10. Color: Galvanized, or customized

11. Usage: GSM, RRU, CDMA, Micro Wave, Radio etc.

12. Certification: ISO9001:2008, ISO14001:2004, OHSAS18001: 2007, SGS, MA




1, Design layout and drawing, set up specifications and sizes.

2, Buy row seamless steel pipes or flat steel plates and folding and welding them to be tubular pipes as well as galvanized steel bolts, nuts, washers and springs.

3, Measure and cut out sizes and holes.

4, Weld necessary parts (such as footing plates, connecting flanges and gussets, antenna mounts, lightning rod, ladder etc.)

5, Polish burrs and welding scars to make all members good surface.

6, Assemble tower sections according to drawings, make sure sizes and connecting parts are correct.

7, Hot dip galvanization: clean surface corrosion and oil with acid or other chemicals-->clean with water-->dip in cosolvents-->dry-->dip in hot zinc pool for galvanization-->cooling and curing-->clean-->dry

8, Check quality and start packing.


Telecom steel tower is generally made of angular steel plates and flat steel plates. The 4-leg lattice tower is generally divided into several sections and the sections are connected by flat connecting plates with bolts and nuts. Each tower section is made of angle steelt plates and flat plates. All the steel plates are prefabricated with cutout, holes and hot dip galvanization.


Specifications of Tubular Telecommunication Steel Tower


Material Angle steel plates, flat steel plate, bolts and nuts
Steel Type Weldable low carbon structural steel
Steel Grade GB Q235, Q345, BS 4360, ASTM A36 etc.
Yield Strength Fy≥235MPa
Tensile Strength Fu≥400MPa
Elongation σ≥20%
Surface Finish Hot dip galvanization
Galvanized layer T≥65μm
Height 20m to 100m, customized to requests
Design 4 legs self-supporting or free standing lattice tower
Structure 1 to 5 platforms, each platform comes with 4 to 6 brackets for mounting antennas or specified number of brackets for mounting antennas, microwaves, RRUs and other devices.
Supply mode CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down)
Fixing/Fastening Bolts and nuts, connecting plates
Configuration Foundations/anchoring bolts, tower sections, 1-5 platforms (optional), mounting brackets, ladder, anti-fall safety system, lightning rod, earthing plate etc.
Wind Load 0.35-1.0kN/sqm
Lifespan 20-50 years
Warranty 3 years
Applications GSM/3G/4G/5G/FM radio antennas, microwaves, telecom stations.


Steel Telecom Antenna Mobile Tower 45m Galvanized Tubular Lattice 0


We are leading Chinese Tower manufacturer which have more than 10 years experiences, offering all kind of tower products and related accessories, do installation and maintenance, and have been exporting more than 45 countries over the decades.

Also we have lots of experiences for the tower design based on International standard and offering low cost-effective solution to our clients worldwide.
