Self Supporting 4 Legs Telecom Steel Tower Galvanized Iron

  • Self Supporting 4 Legs Telecom Steel Tower Galvanized Iron
  • Self Supporting 4 Legs Telecom Steel Tower Galvanized Iron
  • Self Supporting 4 Legs Telecom Steel Tower Galvanized Iron
Place of Origin Guangzhou, China
Brand Name GUANGXIN
Certification ISO9001
Model Number SST-0467
Minimum Order Quantity 1 set
Price USD1998-19998 per set
Packaging Details plastic bubble sheets
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 500 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Delivery Time 20-30 Days Name Galvanized Angle Steel Mobile Tower
Material Weldable Structural Angle Steel Plates Or Pipes Surface Finish Hot Dip Galvanization
Height 30m To 120m Or Customized Height Material Grade GB Q235, Q345, Q355 Or Specified Grade
Yield Strength 235~355MPa Galvanized Thickness 65~85 Microns
Design 1-5 Platforms With Mounting Brackets Wind Load 0.36-1.0kN/sqm
Lifespan 20-50 Years Warranty 3 Years
High Light

4 Legs Telecom Steel Tower

,

Self Supporting Telecom Steel Tower

,

Galvanized Iron Telecom Steel Tower
Leave a Message
Product Description

Self Supporting 4 Legs Galvanized Steel Telecom Tower Galvanized iron



4 Legs Self-Supporting Galvanized Angle Steel Lattice Tower



4-legged Free Standing Angular Mobile AntennaTower



Professional supplier and factory of 4 legs Self-supporting Galvanized steel Lattice Communication Tower, Antenna Tower, Radio Tower and TV tower, Power Transmission and Distribution Tower



There are 3 popular types of lattice communication towers--ground fixed self-spoorting steel towers, rooftop self-supporting steel towers and steel wire guyed towers. The steel lattice towers are usually as high as 35m to 120m. Besides using for telecommunications, the steel towers are also widely used for power transmission and distribution as well as TV and radio signal transmission stations.

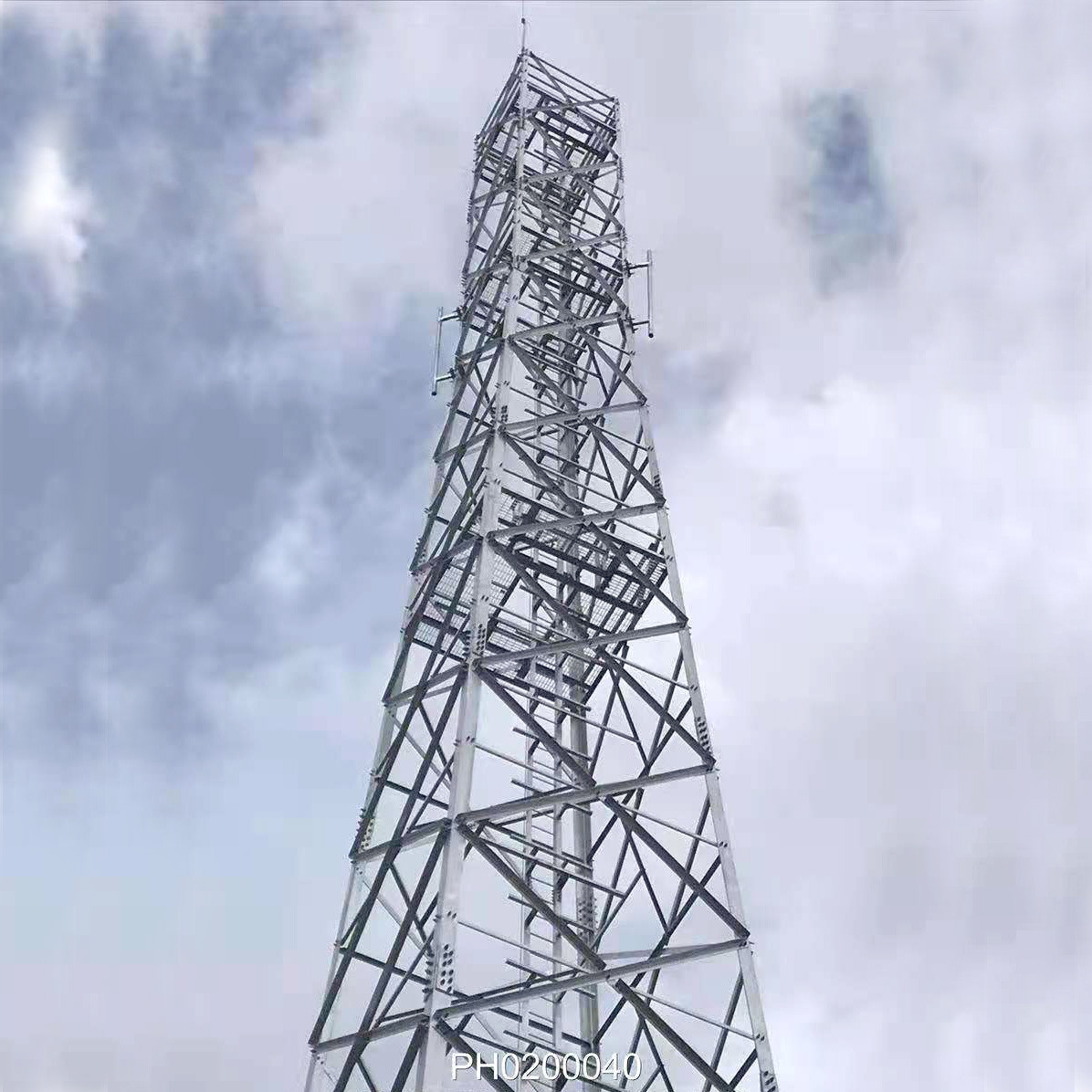

Self Supporting 4 Legs Telecom Steel Tower Galvanized Iron 0

SST: Self-supporting Steel Tower



Self-supporting steel tower is the most popular tower for communication or power transmission and distribution applications. It’s generally designed for 3 legs or 4 legs, composed of galvanized tubular steel tubes and angular steel plates by welding and fastening with bolts and nuts. With height of 20m to 120m, the galvanized iron or steel lattice towers are widely used for mounting mobile communication macrocell stations and power transmission or distribution wires or cables.



Specifications of 4 Legged Angular Steel Lattice Tower



Material Angle steel plates, flat steel plate, bolts and nuts
Steel Type Weldable low carbon structural steel
Steel Grade GB Q235, Q345, BS 4360, ASTM A36 etc.
Yield Strength Fy≥235MPa
Tensile Strength Fu≥400MPa
Elongation σ≥20%
Surface Finish Hot dip galvanization plus optionally painting
Galvanized layer T≥65μm
Height 20m to 120m, customized to requests and specifications or drawings
Design 4 legs self-supporting free standing lattice tower
Structure 1 to 5 platforms, each platform comes with 4 to 6 brackets for mounting antennas or specified number of brackets for mounting antennas, microwaves, RRUs and other devices.
Supply mode CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down)
Fixing/Fastening Bolts and nuts, connecting plates
Configuration Concrete steel frame Foundations/pedestals, anchoring hold down bolts, tower sections, 1-5 platforms (optional), mounting brackets, ladder, anti-fall safety system, lightning rod, earthing plate etc.
Wind Load 0.35-1.0kN/sqm
Lifespan 20-50 years
Warranty 3 years
Applications GSM/3G/4G/5G cellphone antennas, VHF/FM radio antennas, microwaves, telecom microcell or macrovell stations, TV stattions etc.



Self Supporting 4 Legs Telecom Steel Tower Galvanized Iron 1

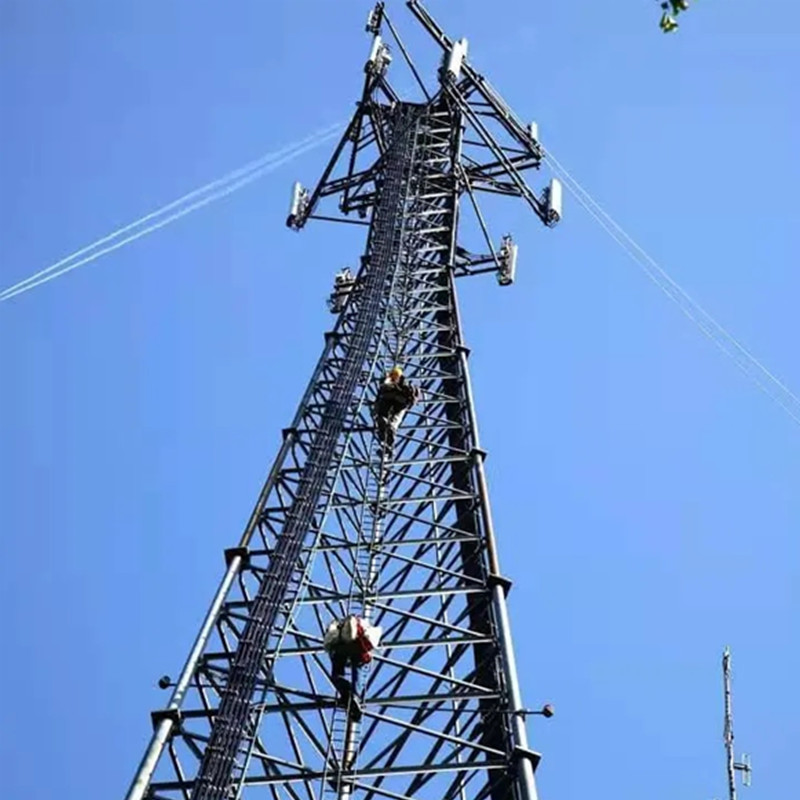

70m High Mast 4-leg Anglular Steel Mobile Communication Tower With 3 Platforms and Antenna Brackets





The structure of 4-legged galvanized steel lattice communication tower is generally composed of concrete foundations with steel cage frames, anchoring bolts, sections of tower body, 1 to 5 platforms, mountning brackets, lightning rotection rod, ladder, earthing plates, anti-fall safety system (cage structure) and fasteners (such as clamps, clips, bolts and nuts etc.). The design structure and height of telecommunication towers can be customized according to requirements and drawings.



Similar Galvanized Steel Communication Towers



3 legged self-support steel lattice tower is generally made of tubular steel pipes as main structure (you can tell it as tower legs or body) and angular steel plates or steel tubes or rods as sub-frame (horizontal and vertical braces). The lattice tower is generally divided into several sections and the sections are connected by flange plates with bolts and nuts. Each tower section is made of tubular steel pipes and angular or flat steel plates, sometimes the tower is made of completely steel pipes or some braces are made from solid steel bars.



The sections of tubular steel lattice tower completely made from steel pipes are generally welded in factory by 5m or longer lattice parts, each section is welded with flange plates for connection among tower sections. When you install the tower, you need to construct foundations with anchoring bolts frame (someone calls it steel cage frame) and concrete. The tower is fixed to foundations via flange plates with bolts and nuts. This kind of tubular steel lattice tower is easier for installation and very solid and strong, but the cost is a little higher and more costly for transportation because all the tower sections are welded in big parts which take more room in the truck or container.



So the most popular 3 legged steel lattice tower is made from tubular pipes and angular steel plates. The steel pipes are made for tower legs, angular steel plates are made for bracings (support members) and flate steel plates for connectors. The steel pipes are welded with flanges at each end for connection. All the parts of tower are prefabricated in CKD (completel knocked down) steel members ready for installation. When you install the tower, just fix the steel pipes to foundations by bolts and nuts and then connect the angular steel plate bracings to the pipes via welded connecting plates with bolts and nuts. In CKD way of fabrication, the cost is lower and shipping cost is also much lower because you can ship more materials in a container or truck.



The structure of 3 legged steel lattice communication tower is generally composed of foundation anchoring bolts (cage frames), sections of tower body, 1 to 5 platforms, mountning brackets, lightning arrest or protection rod, ladder, earthing plates, anti-fall safety system (external cage structure) and fasteners (such as clamps, clips, bolts and nuts etc.). The design, structure and height of telecommunication towers can be customized according to requirements and drawings.



Rooftop Galvanized Steel Bipod or Tripod or Lattice Tower



The rooftop steel tower is a small size tower for communication microcell station for enlarging the telecommunication signal coverage in the communities. It is typically designed as bipod or tripod tower mounted on the roof top, the height of rooftop towers is generally 5m to 15m. The rooftop tower is composed of a main pole which is made from tubular steel pipe and some angle steel or flat steel plates as bracings, connected by flanges, bolts and nuts. A foundation with anchoring bolts is also required for fixing the tower. Sometimes the rooftop tower is designed as wire guyed tower to make it with higher wind load.

Self Supporting 4 Legs Telecom Steel Tower Galvanized Iron 2

Galvanized angle steel plates



Tags:

Q345 Telecom Steel Tower

Q235 Telecom Steel Tower

Q345 Communication Tower
