70m High Angular Q345 Steel Communication Tower For Mounting FM GSM 5G Antenna

Place of Origin Guangzhou, China
Certification ISO9001
Model Number SST-41
Minimum Order Quantity 1000kgs
Price USD1.68/kg
Packaging Details pallets
Delivery Time 20-30 days
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 500kgs monthly

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Material Steel Communication Tower Grade Q235B, Q345B, Q355B, ASTM-A36, ASTM A-153 Etc.
Design 4 Legged Self-supporting Steel Tower Height 25m, 30m, 35m, 40m, 45m, 50m, 55m, 60-80m Etc.
Surface Treatment Hot Dip Galvanization And Painting (optional) Platforms 1-4 Platforms Or Without Platform
Mounting Brackets 3-24 Brackets For Antennas, RRUs, Microwaves Wind Speed 100-280km/h (3s Gust)
Wind Load 0.35-1.0kN/sqm Terrain Category A, B, C
Design Lifespan 20-50 Years Applications FM Radio, GSM 3G, 4G, 5G Communication Transmission Stations
High Light

Q345 Steel Communication Tower


70m Steel Communication Tower


70m gsm antenna tower

Leave a Message
Product Description

70m High Angular Q345 Steel Communication Tower For Mounting FM GSM 5G Antenna


70m High Angular Steel Communication Tower for Mounting FM/GSM/5G Antennas and Microwaves




Self-supporting steel communication tower

4 legged angular lattice tower made up of galvanized steel flat plates and angle steel plates

FM radio transmission tower, GSM 3G, 4G, 5G communication microwave and antenna tower

25m to 80m high mast galvanized steel lattice tower for communication transmission stations

Custom designed and fabricated steel tower for worldwide communication applications.

All the steel towers are fabricated and delivered according to customer's approved drawings and specifications.

The steel tower is generally composed of foundations, tower body, rest and work platforms, antenna mountning brackets, ladder, lightning rod and earthing leads.


4-leg Self-supporting Galvanized Angular Steel Lattice Tower for Mounting Communication Antennas & Microwaves


Material Tubular steel pipes, angular steel plates, flat steel plate or solid steel bars, bolts and nuts
Steel Type Weldable low carbon structural steel gsm antenna tower
Steel Grade GB Q235, Q345, BS 4360, ASTM A36 etc.
Yield Strength Fy≥235MPa
Tensile Strength Fu≥400MPa
Elongation σ≥20%
Surface Finish Hot dip galvanization
Galvanized layer T≥65μm
Height 20m to 100m, customized to requests
Design 3 legs self-supporting or free standing lattice tower
Structure 1 to 5 platforms, each platform comes with 4 to 6 brackets for mounting antennas or specified number of brackets for mounting antennas, microwaves, RRUs and other devices.
Supply mode CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down)
Fixing/Fastening Bolts and nuts, connecting flanges
Configuration Foundations/anchoring bolts, tower sections, 1-5 platforms (optional), mounting brackets, ladder, anti-fall safety system, lightning rod, earthing plate etc.
Wind Load 0.35-1.0kN/sqm
Lifespan 20-50 years
Warranty 3 years
Applications GSM/3G/4G/5G/FM radio antennas, microwaves, telecom stations


70m Self-supporting Angle Steel Tower



Height: 25m to 80m, customized to customer's requirements

Material: galvanized steel pipes (for tower legs) and angle steel plates (for bracings)

Steel grade: Q345B or Q355B for tower legs, Q235B for bracings, grade 4.6 or 8.8 for bolts and nuts.

Wind speed (3 seconds gust): 100-290km/h

Wind load: 350-1000N/sqm




Similar Products

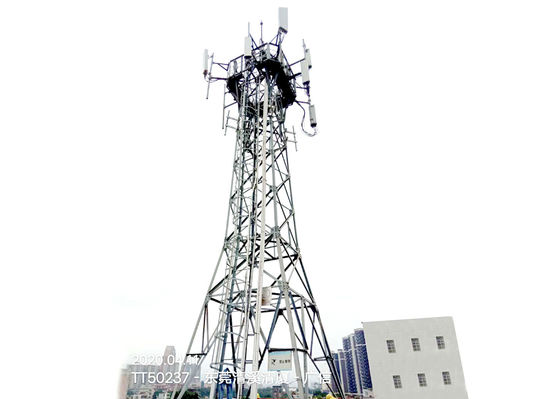

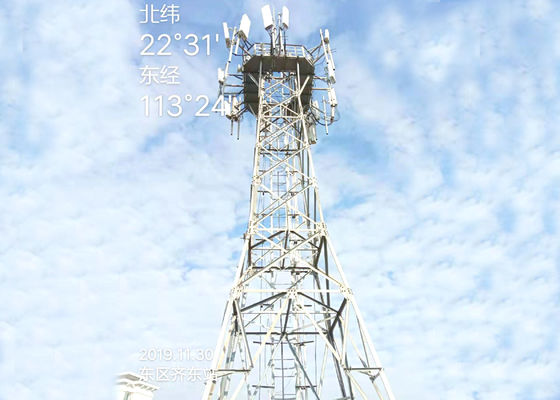

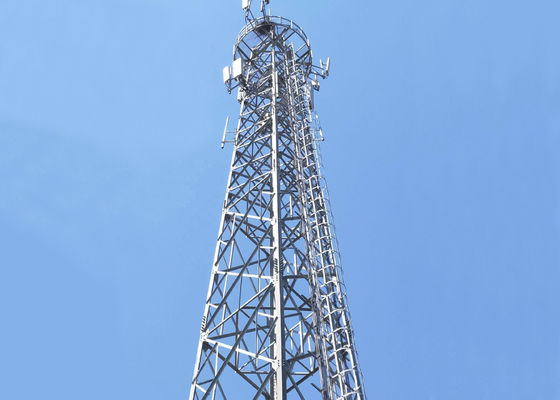

70m High Angular Q345 Steel Communication Tower For Mounting FM GSM 5G Antenna 0 70m High Angular Q345 Steel Communication Tower For Mounting FM GSM 5G Antenna 1 70m High Angular Q345 Steel Communication Tower For Mounting FM GSM 5G Antenna 2

     3 legged angular steel tower               Rooftop Self-supporting Steel Tower         Self-supporting Monopole






1, Where is your factory?
Our factory is located in Huadu District of Guangzhou City, about 35km away from Baiyun Airport.

2, What can you supply?
We're professional manufacturer of steel frames for civil infrastructures and frameworks, especially telecommunications towers, power grid towers, street light poles, portal gantry frames for traffic lights, guideboards, CCTV cameras, LED display screens, advertising billboards, factory plants etc. We can produce the steel works according to your designs and drawings.

3, How long can you deliver?
15-35 days after confirming shop drawings, depending on order quantity.

4, What’s your advantages comparing with other suppliers?
We have been specializing in this field for more than 10 years since 2009, we have professional engineers and designers, skilled workers, advanced production line equipped with CNC and laser cutting machines, welding machines, shaping machines, test instruments etc., we can produce the poles and towers or other steel frameworks according to customers’ designs, specifications, drawings, requirements. Our quality is very good but price is reasonable and competitive. We’re also providing excellent in-sales and after-sales services. We always provide good quality products and services beyond customers’ expectations.

5, Can I customize the towers, poles or frameworks?
Yes, we can fabricate the towers, poles, frameworks or other related products according to your drawings, specifications and requirements.

6, What’s your payment terms?
T/T or irrevocable documentary L/C is accepted for us. The general payment arrangement is 30% down payment before production and full payment before shipping by T/T, or L/C issued before production.

7, Can you guarantee the quality?

8, Where are you shipping?
We usually ship from any port of Guangzhou or Shenzhen, other ports in other cities are also available if required.

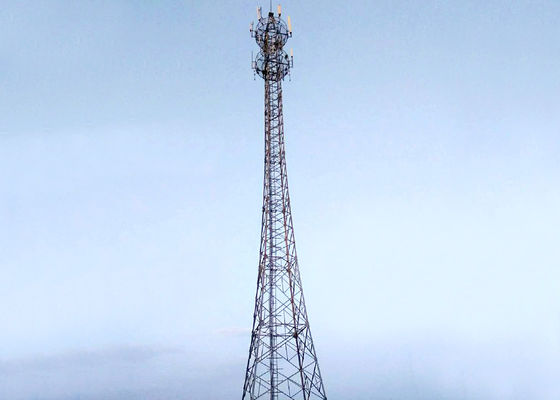

70m High Angular Q345 Steel Communication Tower For Mounting FM GSM 5G Antenna 3
