xName | Double Arm Street Light Pole Drawing Manufacturer In Guangzhou | Material | Weldable Structural Carbon Steel Plates Or Pipes |
---|---|---|---|
Surface Finish | Hot Dip Galvanization Plus Powder Coating(optional) | Height | 10m |
Pole Shape | Conical, Tapered, Octangular, Polygonal, Round Etc. | Arms | 1 Or 2 Or Customized To Request |
Applications | Traffic Monitor, Public Security CCTV, Parking Lotsurveillance Etc. | Color | Grey/Green/Blue/Red/White |
High Light | 10m Solar Panel Street Lamp Post,OEM Solar Light Street Light Pole |

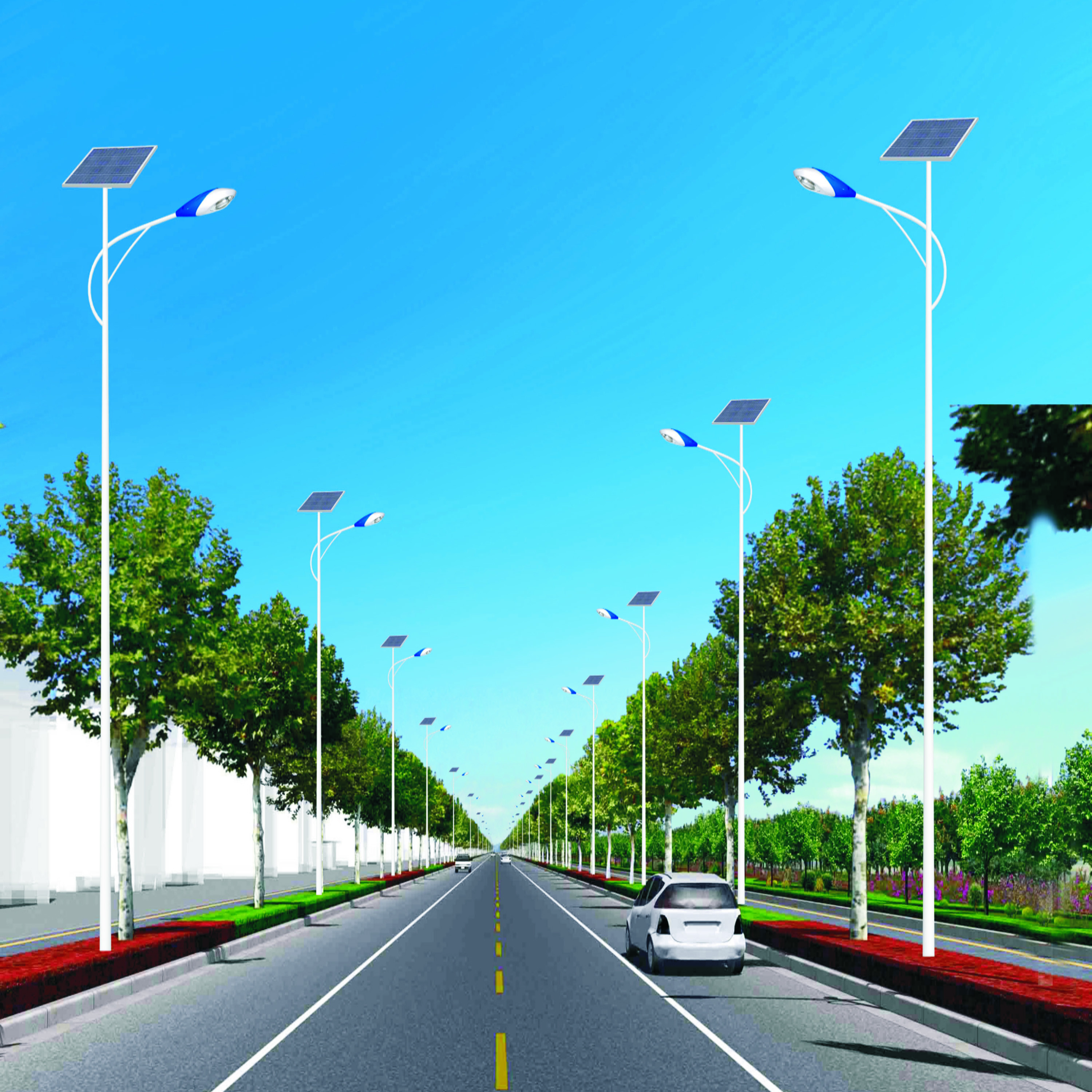

High Quality Galvanized Steel Solar LED Street Light Pole, Lamp Post, Lighting Column or Tower made in China

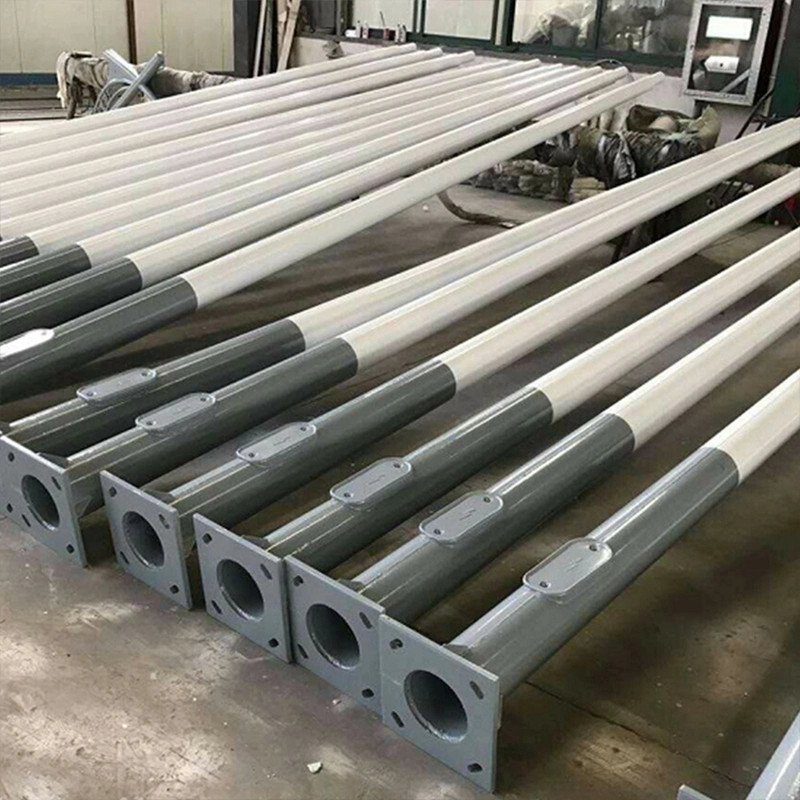

The street light poles are generally made from high quality structural low carbon steel (typically called mild steel) plates in swaged tapered conical or octagonal tubes, the sizes can be customized according to the project designs and specifications
The roadway or highway Street Light Pole is finished with hot dip galvanization and powder Coating process as the key process to ensure the anti-corrosion of the lamp pole. The powder coating finish is applicable to durable color and high weather resistance.
Descriptions | Galvanized steel roadway light pole, highway lighting tower, solar LED street light pole, garden yard lamp post |
Material | Low carbon weldable structural steel |
Grade | GB Q235, Q345, BS4360, ASTM A36 or A572 etc. |
Yield Strength | 235-355MPa |
Height | 5m to 35m or other specified height |
Thickness | 4mm to 15mm, depending on height of pole. |
Pole Shape | Conical/tapered, straight round/cylindrical, square or rectangular, polygonal etc. |
Diameter or Dimensions | Subject to height of pole and required mechanical properties. |
Design | Single, dual or multiple straight or curved arms and brackets |
Surface Finish | Hot dip galvanization plus powder or PVDF coating (optional) |
Galvanization | 65-100 Microns |
Coating | 35-80 Microns |
Color | Silver, grey, black, white, blue, yellow etc. |
Applications | Roadways, streets, highways, stadiums, public sqaures, airports, railway stations, communities, parking lots, gardens etc. |
Our Product Range
1, Mobile Telecommunication lattice towers and Masts
2, Power transmission towers and poles
3, Celluar antenna poles
4, Artificial trees and fiberglass cover camouflaged antenna towers
5, Roadway, highway street light poles
6, High mast utility, sports field and stadium lighting towers and columns
7, Traffic signs, signal lights, CCTV surveillance cameras cantilevers and gantry frames
8, Other steel structures.
High Mast Lamp poles is generally 20m-35m high made of several sections by sleeve joint, the lamps are generally 200-400W LED luminairs. Very popular for outdoor large sqaures, highways or convention centers.
The popular steel light poles include tubular steel pole, solar street light pole, conical or tapered light pole, hexagonal or polygonal lighting pole, straight round street light pole and octagonal lighting pole. There are 2 ways of installation of the steel poles, one is directly buried and the other way is fixed by base plate with bolts and nuts.
Typical installation way of steel poles, especially for the high mast lighting or communication poles
The steel lighting poles are designed with single, dual or multiple arms and brackets for mounting lamps, solar panels, CCTV cameras or other facilities as per requests. The designs of arms and brackets are also customized to requirements for different connectors of luminairs or other facilities. With custom special designs, the light poles are not only used for lighting, monitoring or traffic signal control but also for city landscape decorations.
Erection methods of Street Light Poles
1. Directly buried or planted into ground or earth
2, Mounted by bolts with concrete foundation
