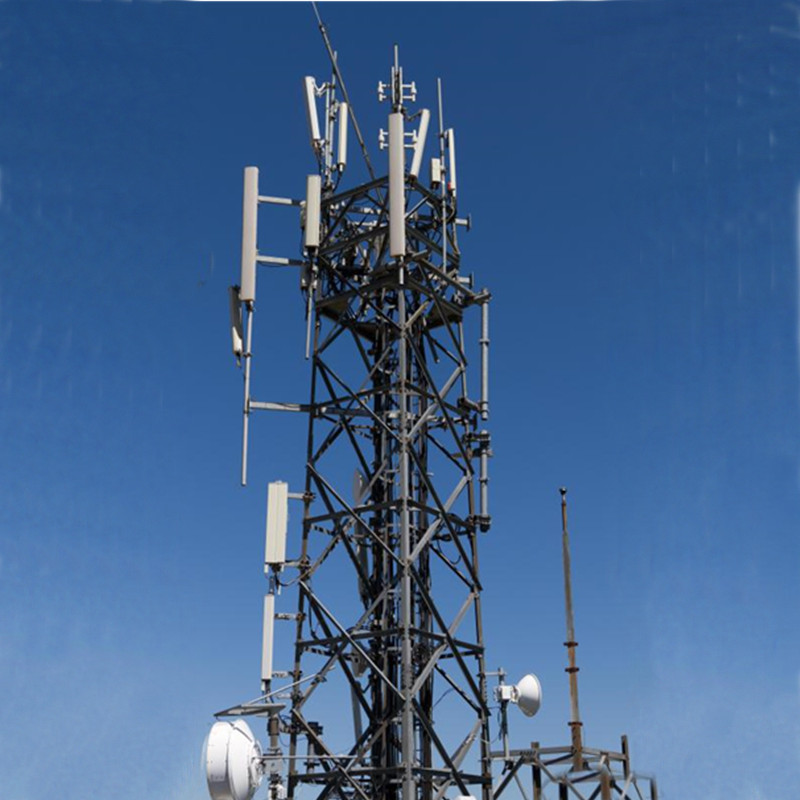

Antenna Lattice Microwave Communication Tower Four Legged 20m High Angle Steel

  • Antenna Lattice Microwave Communication Tower Four Legged 20m High Angle Steel
  • Antenna Lattice Microwave Communication Tower Four Legged 20m High Angle Steel
Place of Origin Guangzhou, China
Brand Name GUANGXIN
Certification ISO9001
Model Number GX-5205
Minimum Order Quantity 1 set
Price USD1998-19998 per set
Packaging Details plastic bubble sheets
Delivery Time 20-30 days
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 1000 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Antenna Communication Towers Four Legged Lattice Microwave 20m High Angle Steel Material Weldable Structural Angle Steel Plates Or Pipes
Surface Finish Hot Dip Galvanization And Power Coating Height 30m To 50m Or Customized Height
Material Grade GB Q235, Q345, Q355 Or Specified Grade Yield Strength 235~355MPa
Galvanized Thickness 65~85 Microns Design 1-4 Platforms With Mounting Brackets
Wind Load 0.36-1.0kN/sqm
High Light

Lattice Microwave Communication Tower

,

20m Microwave Communication Tower

,

High Angle Steel Lattice Towers
Leave a Message
Product Description

Antenna Communication Towers Four Legged Lattice Microwave 20m High Angle Steel



4 legged self-support steel lattice tower is generally made of angular steel plates and flat steel plates. The 4-leg lattice tower is generally divided into several sections and the sections are connected by flat connecting plates with bolts and nuts. Each tower section is made of angle steelt plates and flat plates. All the steel plates are prefabricated with cutout, holes and hot dip galvanization.



Application: telecom antenna WIFI microwave transmmision.



Communication tower (including Three legged angle steel tower, four legged angle steel tower , Single pole tower), (Angle steel tower , Single- pipe tower , Steel tube tower),(Square steel tower, Triangular tower, Monopole), Microwave tower, Guyed tower(Guyed Masts), Self supporting tower, Guard tower, Bionic tower,Cell phone tower, lattice tower, Broadcast and TV tower, wind power tower, Power transmission tower ,Electric Power Series Towers (--Substation Structures,-Power Transmission Line Angle Steel Tower, -Power Transmission Line Steel Tube Towers), Street Light Pole Series, Technical Decoration Series Towers, Environment Series Towers etc.all kinds of towers.



Specifications of 4 Legged Angular Steel Lattice Tower



Material Angle steel plates, flat steel plate, bolts and nuts
Steel Type Weldable low carbon structural steel
Steel Grade GB Q235, Q345, BS 4360, ASTM A36 etc.
Yield Strength Fy≥235MPa
Tensile Strength Fu≥400MPa
Elongation σ≥20%
Surface Finish Hot dip galvanization
Galvanized layer T≥65μm
Height 20m to 100m, customized to requests
Design 4 legs self-supporting or free standing lattice tower
Structure 1 to 5 platforms, each platform comes with 4 to 6 brackets for mounting antennas or specified number of brackets for mounting antennas, microwaves, RRUs and other devices.
Supply mode CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down)
Fixing/Fastening Bolts and nuts, connecting plates
Configuration Foundations/anchoring bolts, tower sections, 1-5 platforms (optional), mounting brackets, ladder, anti-fall safety system, lightning rod, earthing plate etc.
Wind Load 0.35-1.0kN/sqm
Lifespan 20-50 years
Warranty 3 years
Applications GSM/3G/4G/5G/FM radio antennas, microwaves, telecom stations.



Antenna Lattice Microwave Communication Tower Four Legged 20m High Angle Steel 0



Guangxin Communication supplied self supporting 4 legged telecom steel tube tower are made of steel tube, designed on a tubular base pattern.The communication tower is optimized for medium to heavy loads which is used for standard cellular sites. 4 Legs Tubular High Quality 60m Telecommunication Steel Tower can be equipped with a variety of accessories, such as work or rest platforms, antenna mounts, safety devices,obstruction lights, lightning protection kit and more. All of the accessories can be installed at any desired height and orientation according to customer Specification.
