Traffic Surveillance CCTV Camera Poles Support Signal Light Sign Cantilever

Place of Origin Guangzhou, China
Certification ISO9001
Model Number CSP-013
Minimum Order Quantity 10
Price USD198-2038 per piece
Delivery Time 20-30 days
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 2000 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Name Galvanized Steel Traffic Cantilever Material Weldable Structural Carbon Steel Plates Or Pipes
Surface Finish Hot Dip Galvanization Plus Powder Coating(optional) Height 8m Or Customized To Requests
Pole Shape Conical, Tapered, Octangular, Polygonal, Round Etc. Arms 1 Or 2 Or Customized To Request
Applications Traffic Monitor, Public Security CCTV, Parking Lotsurveillance Etc.
High Light

Traffic Surveillance CCTV Camera Poles


Sign Cantilever CCTV Camera Poles

Leave a Message
Product Description

Galvanized Steel Traffic Surveillance CCTV Camera Support Signal Light Pole Sign Cantilever


Low Carbon Steel Traffic Security Camera Mast 6m to 10m Steel Street Traffic Signal Poles


Galvanized Steel Traffic And Public Security CCTV Camera Monitor Cantilever And Gantry Frame


Galvanized Steel Traffic Surveillance Camera Pole

CCTV Monitor Camera Steel Pole

Public Security Monitor Camera Supporting Steel Pole or Tower

Traffic Signal Light and Camera Pole

Street Light and Traffic Signal light Pole with hot dip galvanized finish

Steel Pole or Tower for mounting traffic signal lights, cameras, signs and LED VMS display screen


Founded in 2009, specializing in manufacturing and supplying steel towers and poles for traffic, lighting, landscaping and communication, we can customize all kinds of steel works for domestic and international projects, including:


* Galvanized angular steel communication towers and masts.

* Galvanized angular steel power transmission and distribution towers and poles.

* Galvanized steel tubular lattice towers for communications, power transmission and distribution.

* Street light poles and camouflaged antenna and lighting towers

* Traffic signal lights and signs cantilver and gantries

* Hight Mast Landscaping, lighting and communication towers and poles

* Artificial tree landscaping and camouflaged communication towers

* Traffic and public security CCTV monitor camera poles and gantry frames

* Large scale steel structures and gantry frames for traffic management facilities.

* Other steel structures.




Descriptions Steel poles and cantilever for mounting street lights, CCTV camera, traffic signs and signal lights, LED screen etc.
HS Code 7308900000
Material Low carbon weldable structural steel
Grade GB Q235, Q345, BS4360, ASTM A36 etc.
Yield Strength 235-355MPa
Height 5m to 35m or other specified height
Thickness 4mm to 15mm, depending on height of pole.
Pole Shape Conical/tapered, straight round/cylindrical, square or rectangular, polygonal etc.
Diameter or Dimensions Subject to height of pole and required mechanical properties.
Design Single, dual or multiple straight or curved arms and brackets
Surface Finish Hot dip galvanization plus powder or PVDF coating (optional)
Galvanization 65-100 Microns
Coating 35-80 Microns
Color Silver, grey, black, white, blue, yellow etc.
Applications Roadways, streets, highways, stadiums, public sqaures, airports, railway stations, communities, parking lots, gardens etc.


Traffic Surveillance CCTV Camera Poles Support Signal Light Sign Cantilever 0

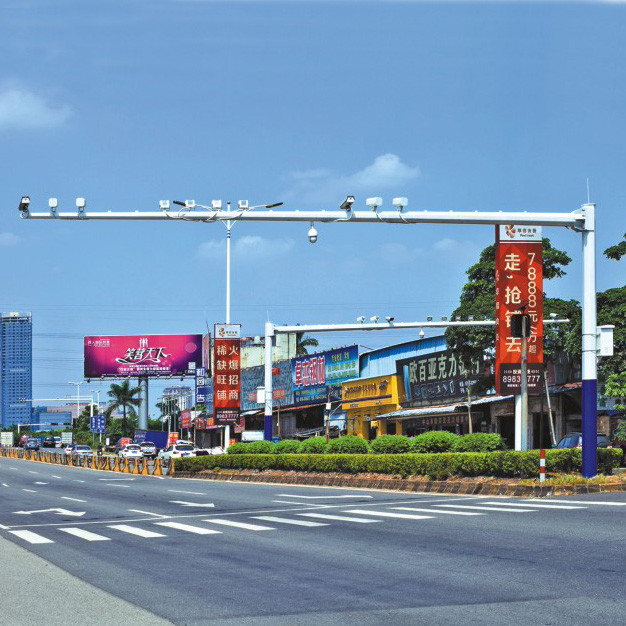

6m to 10m Dual Arms Traffic Surveillance Camera Cantilever Support


Traffic Surveillance CCTV Camera Poles Support Signal Light Sign Cantilever 1

N-shape galvanized Steel Lattice Tower Gantry Frame and Structure for mounting traffic facilities
